Home ProductsWall Panel Roll Forming Machine

3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

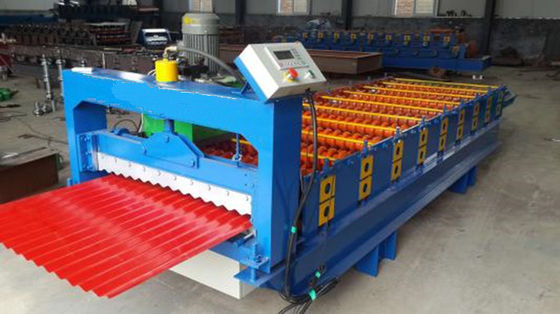

3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter

China 3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter supplier
3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter supplier 3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter supplier

Large Image :  3kw Aluminium Wall Panel Roll Forming Machine with Hydraulic moulding cutter

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months
High Light:

metal sheet forming machine

,

corrugated sheet roll forming machine

3kw Aluminium Wall Panel Roll Forming Machine With Hydraulic Mould Cutter



Main parameters

No.                   850 Corrugated Metal Roof Panel Machine
1 Suitable to process Steel,Color steel plate,GI,Aluminium sheet...
2 Width of the plate 1000mm
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Manual one, can load 5 tons raw material
5 Rollers for forming 9 rows
6 Diameter of the roller 80mm
7 Rolling material Carbon Steel 45#
8 Main motor power 3kw
9 Productivity 10-15m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 3kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 3T
18 Dimensions 5.5*1.5*1.10m
19 Voltage 380V 50Hz 3phases(changeable as needs)



Our Services

1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.

2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.

3). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4). Warranty: 12 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.



FAQ

Q1:If our country's voltage is different from yours, how to solve that?
A1:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2:We bought your pre-engineered structure machine, but we couldn't install and debug it?
A2:Don't worry about that, when finished the machine, we will send you the manual book which shows how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3:About the after service, what you can serve?
A3:All the machines are two years guaranteed, life maintenance. We can send the technician aboard, but you should pay the round-trip cost.

Q4:How to place order: Inquiry---confirm the price and profile drawings----confirm the PI---arrange the doposit or L/C---then OK

Q5:How to get to our company:

Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou xi station(58 minutes),then we can pick up you in Cangzhou xi station.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou xi(4.5 hours),then we can pick up you in Cangzhou west station.

If any questions,you can call me mobile phone at any times:0086-13754536227 Kim Lee
