910mm IBR Standard Wall Panel Roll Forming Machine , Cold Roll Forming Machine

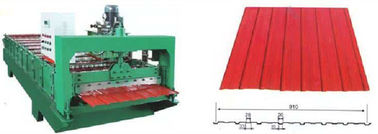

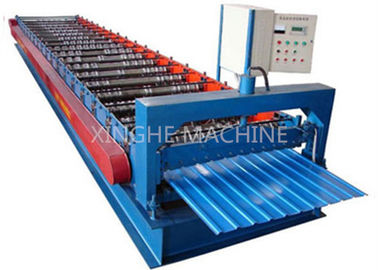

Large Image : 910mm IBR Standard Wall Panel Roll Forming Machine , Cold Roll Forming Machine

Product Details:

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	20 Working days
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored Steel / PPGI / Galvanized Steel Coil	Power:	3.0+3.0kw
Voltage:	380V 60HZ Or At Your Requirement	After-sale:	12 Months
High Light:	metal roof forming machine , corrugated sheet roll forming machine

Machine components:

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	Post cut	set	1
6	Output table	set	1

Techical description:

A Manual decoiler

Inner Diameter: Φ450 – Φ600 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

B Roll-Forming M/C:

Material thickness:0.3-1.0mm

Feeding and effctive width depends on profile drawing
Steps:11/13 (for standard drawing)

Roller Material: 45# steel

Diameter of active shaft: 70mm

Wall thickness of the main forming machine: 14mm steel plate

Main forming machine body : 300mmH steel

Main Motor Power:4KW

Voltage:380V/50Hz.

Line speed:8-12m/min;

Rolling chromium thickness:0.05 mm

C Cutting device

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.

Cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 55-60°C

D Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

Power of the oil pump: 3kw

Hydraulic oil :40#

E Control system:

Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron

Length Error:±1mm

Transducer: Panasonic

F Output table

It is smpile and used to load the finshed product.

Lenght:6m
