Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

China Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier
Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier

Large Image :  Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Voltage: 380V 60HZ Or At Your Requirement
Power: 3.0+3.0kw After-sale: 12 Months
High Light:

metal sheet forming machine

,

corrugated sheet roll forming machine

850 Corrugated iron roofing sheet making roll forming machine



850 Corrugated roof sheet

Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine



Machine parameter

NO. Parameters

Colored glazed tile making machine/

Xinghe machinery galvanized steel sheet product line

1 Raw material suitable material

colored material coil,galvanized coil,

aluminum coil

feeding width 1000mm(can design as your need)
thickness 0.27-0.8mm
2 Effective width 850mm
3 Rollers material 45#steel plate with chrome
rows 9 rows
4 shafts material 45#steel
diameter 70mm
5 Cutting blade hydrualic cutting ,Cr12 with quenching treatment
6 Capacity 6-12m/min
7 Weight 3.0T
8 Control system PLC control system with transducer inside
9 Dimension 5600*1300*1000mm
10 Machine body 300mm H shape steel
11 Middle plate 14mm
12 Power 3KW+3KW
13 Process precission within 1 mm

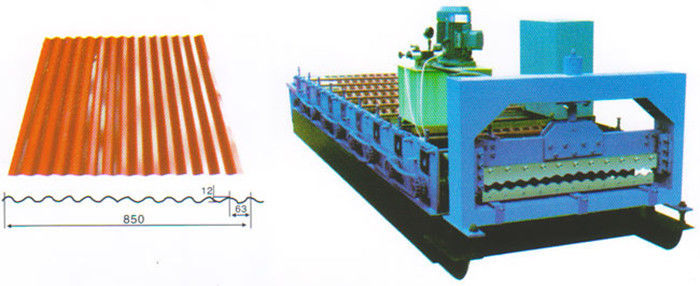

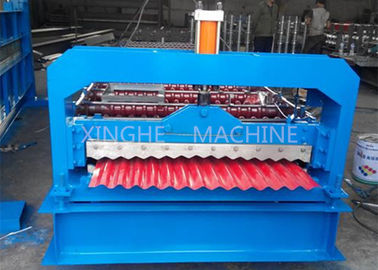

Machine show

Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

/photo/coldroll-formingmachines/editor/20170720154906_73116.jpg






More machines
Automatic Wall Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

Packaging & Shipping

1.Standard pack: Main machine is naked,the computer control system is packed by wooden box.
2. Packing according to customers' needs

3.We have professional technicial for loading

Guaranteed the goods load into container without any damage.

4.Transportation : Machines need one 40 feet container



Warranty:

12 months, during the time any parts damaged because of quality problem will be changed for free.



Delivery Time:

within 20 working days after received the prepaid. Some in stock ones can be delivered at any time.



Payment Terms:

30% deposit is paid by T/T before the production, the rest paid after inspection confirmation before loading.



Install and Training:

1)if buyers come and inspect our factory , the training about the install and operate wiil be provided face to face.

2)if not, the instruction manual and video will be provided to show how to install and operate.



After-sale Service:

We provide a 12-hour online service for our customers.

a )When technicist debug the machines at the buyer's place,the buyer should pay the expense of accommodation and traffic fee for the technicist,and pay the technicist $100 per day.

b) If the buyer sends people to take the training about the operation given by the seller, during the training time, the seller will pay the expense of accommodation, and traffic fee for the buyer's people.
