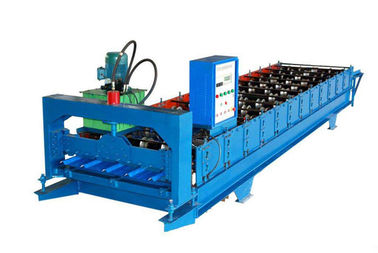

Color Coated Wall Panel Roll Forming Machine , Roofing Sheet Making Machine

All Products

Cold Roll Forming Machines (66)

Automatic Roll Forming Machines (30)

Wall Panel Roll Forming Machine (20)

Roof Panel Roll Forming Machine (22)

Double Layer Roll Forming Machine (31)

Glazed Tile Roll Forming Machine (12)

Floor Deck Roll Forming Machine (13)

Roll Shutter Door Forming Machine (12)

Purlin Roll Forming Machine (16)

Highway Guardrail Roll Forming Machine (11)

Ridge Cap Roll Forming Machine (14)

Downspout Roll Forming Machine (11)

Sandwich Panel Roll Forming Machine (11)

Roll Forming Production Line (23)

Certification

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	20 Working days
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored Steel / PPGI / Galvanized Steel Coil	Power:	3.0+3.0kw
Voltage:	380V 60HZ Or At Your Requirement	After-sale:	12 Months
High Light:	metal sheet forming machine , corrugated sheet roll forming machine

Technical parameters:

1	Name of commodity & specification	XH-900 roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-0.8mm
12	Feeding Width	1000mm
13	Effective width	900mm
14	Productivity	8-12m/min
15	Roll Station	11
16	Roller Diameter	80mm
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	6000×1500×1400mm
21	Total Weight	3.0T
22	Components	Manual Uncoiler-------------------1 set
		Guiding Platform------------------1 set
		Coil Strip Leveler------------------1 set
		Main Machine of Roll Forming------1 set
		Electric-Motor---------------------1 set
		Cutting Device--------------------1 set
		Hydraulic Station------------------1 set
		PLC Control-----------------------1 set
		Supporter Table-------------------1 set
23	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

24	Package	nude in the container
25	Minimum order quantity	1 set
26	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

27	Delivery time	20 working days later after receiving the deposit
All technical parameters can be changed according to user's need.

900 wall panel colored tile roll forming machine
