Double Layer Metal Roofing Sheet Ibr Roof Panel Roll Forming Machine

China Double Layer Metal Roofing Sheet Ibr Roof Panel Roll Forming Machine supplier

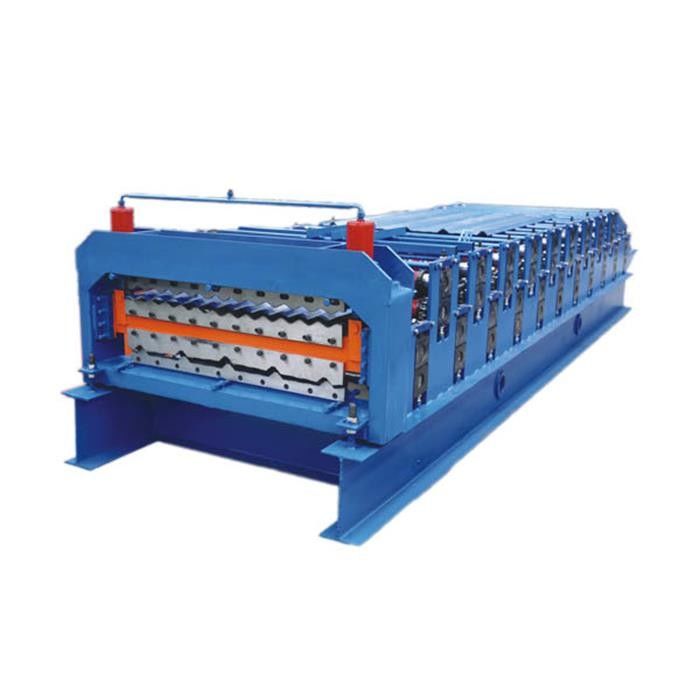

Large Image :  Double Layer Metal Roofing Sheet Ibr Roof Panel Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: Western Union, L/C, T/T
Detailed Product Description
Voltage: 380V,3 Phase, 50-60Hz Warrenty: Twelve Months
Color: Blue, Green, Red, Orange Or As Customers' Requirments Origal Palce: Botou City, Hebei Province, China
Service: OEM, Label Tile Type: Colored Steel/ PPGI
Use: Roof Production: 8-12m/min
Power: 3+3 KW Certification: BV,CE,SGS, ISO9001
Roller Material: 45# Steel Plated
High Light:

metal roof forming machine

,

metal sheet forming machine

Double Layer Metal Roofing Sheet Ibr Roof Panel Roll Forming Machine



1. Machine name: IBR Roof Panel Machine 1050 Trapezoid/Corrugated Steel Roofing Sheet Roll Forming Mahcine



2. Machine parameters:

1 Material of input sheet Galvanized steel/ colored steel
2 Feeding width 1250mm
3 Effective width 1050mm
4 Material thickness 0.3-0.8mm
5 Main motor power 3kw
6 Hydraulic pump power 3kw
7 Forming step 13 steps
8 Diameter of shaft 75mm
9 Main frame 300H steel
10 Roller material 45# steel with chrome
11 Cutting knives material Cr12
12 Machine size 6.0*1.5*1.5m
13 Machine weight About 2.5 tons



3. Work flow:

manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table
