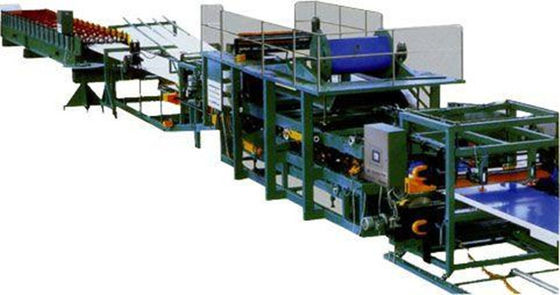

Colored Steel Continuous Sandwich Panel Production Line With 5 Tons Capacity

Manual decoiler

1).Material coil inner diameter: 450mm-550mm

2).Outer diameter:1500mm

2).Max coil width:1250mm

3).Carrying capacity: 5T

Forming device

1)Shaft material:high grade No.45 steel after treatment

2)Out diameter is80 mm

3)Roller material: 45# steel polished and coated with chrome HRC55-60°

4)Forming speed:8-15m/min

5)Main motor power:3 kw

6)Roller station:16stations

7)Coil width: 1000/1200/1250mm

8)Effective width:950/1150mm

9).Voltage:380v,50Hz,3 phase

Hydraulic cutter

1). material of blade: Cr12 mould steel with quenched treatment 55-60°C

2). cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort,

no wasting , high safe factor.(main motor stop cutting)

Control system

1.)Type: PLC Frequency Control System with touch screen
2).PLC Brand: Delta

3).Encoder Brand: Omron

4).Screen: Delta test screen

5).Automatic length and quantity measurement

6).Control station is used to control product length and quantity, automatically cutting to length

and stop when required quantity is achieved.

7).Length Error: ±2mm, error is easy to adjusted.

It is simple and used to load finished product.

Length:6m

Spare Parts

1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2).Rubber mat 1 pcs;

3).Bolt spanner 1 pcs

Our engineer will go to make installation there, Buyer pay our engineer 100 USD /Day
