Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine

China Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine  supplier
Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine  supplier Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine  supplier

Large Image :  Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Use: Shutter Door
Sheet Type: PPGI / Galvanized Sheet Voltage: 380V, 3 Phase, 50Hz
Power: 3kw+3kw Control: PLC Computer Control
High Light:

rolling shutter strip making machine

,

roller shutter door roll forming machine

New Condition Roller Shutter Door Slats Roll Forming Machine Rolling Shutter Door Roll Forming Making Machinery

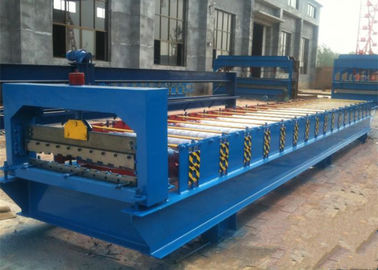

Machine photoes

Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine



Machine parameter

1.Suitable to process: Color steel plate

2.Width of the plate: 1220mm
3.Rollers: 18rows
4.Dimensions:7*1.55*1.51m
5.Power: 3kw
6.Thickness of the plate:0.3-0.7mm
7.Diameter of the roller:Φ60mm
8.Weight: About 3.2T
9.Voltage: 380V 50Hz 3phases
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control



Working flow

De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table



Machine component

3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg



Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 3.0KW



Hydraulic Cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm



Control Box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)



Output Table
Length : 3m
Quantity: 1units



Standard Profile and Drawing

Steel Roll Shutter Door Forming Machine , Door Frame Roll Forming Machine

Galvanized Metal Door Machine Twin Lath Roller Shutter Slat Roll Forming Machinery

Our company is a manufacturer of roll forming machine. At present, our products have been exported to more than 70 countries and regions over the world, and maintained good cooperative relations with customers .We do firmly believe :technological innovation ,making every detail of the product perfect is our ambition ever.


Main product catagories
color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.

Professional
Botou XINGHE Roll Forming Machine Factory, are professional manufacturer and exporter , specializing in designing, manufacturing, developing, sales and services in roll forming machine .


Experience
We are proud of our own professional team with more than 10 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services.

Location
We are located in Botou city,Hebei,near Beijing, with convenient transportation access. We have been establishing and keeping good business relationship with more than 70 countries of worthy clients all over the world, mainly locating in East Europe, Middle East, South and West Asia, Africa and South America.
