Payment & Shipping Terms:
|Condition:||New||Type:||Tile Forming Machine|
|Tile Type:||Colored Steel / PPGI / Galvanized Steel Coil||Power:||4.0+4.0kw|
|Voltage:||380V 60HZ Or At Your Requirement||After-sale:||12 Months|
trapezoidal sheet roll forming machine,
roofing sheet making machine
|Style||used metal roof tile making machine|
|Forming steps||9rows / 11 rows|
|Hydraulic station power||4.0kw|
|Diameter of shaft||75mm|
|Electric condition||380V/3Phase/ 50HZ|
|Suitable to process||color steel coil ppgi/ppgl gi/gl|
|Decoiler max capacity||4-6tons|
|Control system||PLC control|
|Raw material thickness||0.2-0.8mm|
|Main application||tile roof|

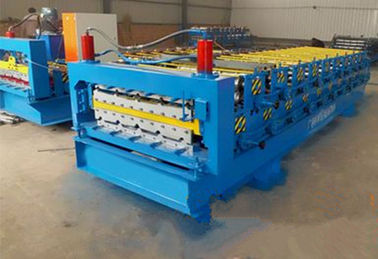

Parts of double layer roof making machine :
|Feeding & guiding device||1set|
|Main roll forming machine||1set|
|Hydraulic pressing system||1set|
|Hydraulic cutting system||1set|
|Run out table||1set|
Double layer roof making machine Process flow:
Main Products of our company :
1. Our roof tile Making Machine (except wearing parts) come with 12 months warranty. Within the 12 months period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
A. Roll forming machinery: which could produce matalic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipments such hydraulic decoiler, auto stacker, etc.
B. Steel structure Building: Complete service including design, fabrication, delivery and installation supervision for PEB industry, such as warehouse, workshop, shopping mall, highrise building, etc.
C. Related products: Metal material for PEB building and other related equipments, like H-beam process machinery, slitting/CTL machine, etc.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 3 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 15 years without any problem. We can provide 1 years free qualityassurance.
8. How long the machine could be made?
Jenerally speaking, the machine could be made without 20working days .But if you need machines in a hurry,we can make it for you less than 15days .
