3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles

China 3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles supplier

Large Image :  3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001
Model Number: Double layer

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: Western Union, L/C, T/T
Detailed Product Description
Voltage: 380V,3 Phase, 50-60Hz Warrenty: Twelve Months
Color: Blue, Green, Red, Orange Or As Customers' Requirments Origal Palce: Botou City, Hebei Province, China
Service: OEM, Label Tile Type: Colored Steel/ PPGI
Use: Roof Production: 8-12m/min
Power: 3+3 KW Roller Material: 45# Steel Plated

Galvanized meatal double layer roofing sheet roll forming machine double layer roof tile roller former machinery



1. Machine name: Double layer machine

   Any two or three roof & Wall panel sheet can be produced in one double layer or three layer machine.



2. Machine parameters:

1 Material of input sheet Galvanized steel/ colored steel
2 Feeding width 1000/1200/1220/1250mm for choice
3 Effective width Design as customer's reuqirment
4 Material thickness 0.3-0.8mm
5 Main motor power 3kw
6 Hydraulic pump power 3kw
7 Forming step 13 steps
8 Diameter of shaft 75mm
9 Main frame 300H steel
10 Roller material 45# steel with chrome
11 Cutting knives material Cr12
12 Machine size 6.0*1.5*1.5m
13 Machine weight About 2.5 tons



3. Work flow:

manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

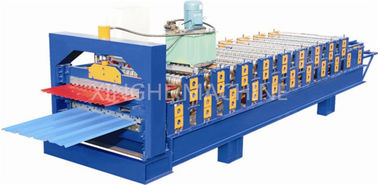

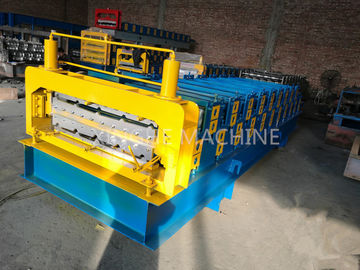

4. Machine pictures:

3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles
