Color Coated Metal Sheet Rolling Machine , Smart Metal Roofing Roll Former

China Color Coated Metal Sheet Rolling Machine , Smart Metal Roofing Roll Former  supplier

Large Image :  Color Coated Metal Sheet Rolling Machine , Smart Metal Roofing Roll Former

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 5.5+4.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months

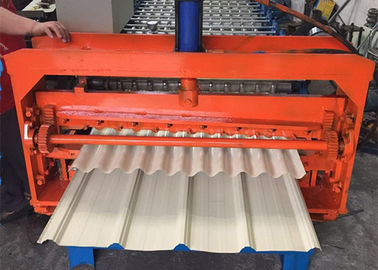

 840/850 Roofing Color Glazed Tile Profile / Roof Panel Double Layer Cold Roll Forming Machine



Product Description

Thickness of material sheet:
0.3mm-0.8mm
Width of material coils:
1000 mm
Effective width:

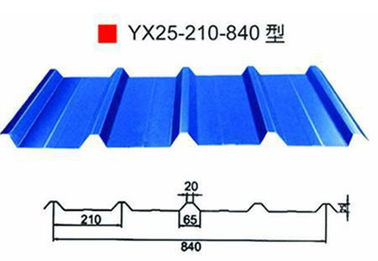

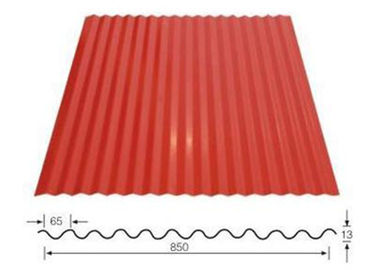

top layer: 850mm lower layer : 840mm
Working speed:
8-12m/min
Rollers step:
top layer: 11steps lower layer: 13steps
Material of rollers:
45# steel, plated with hard chrome 0.05mm
Material of shafts:
45# steel
Diameter of shafts:
Top layer:¢70mm Lower layer:¢80mm
Material of cutter:
Material of cutter: Cr12 quenching, HRC58-60
Main motor power:
5.5KW
Hydraulic station motor power:
4.0KW
Hydraulic station pressure:
8-12 Mpa
Frame of machine:
welding with 350 H steel
Thickness of side panel:
16mm
Controlling system:
adopts industrial computer PLC frequency controlling
Machine size:
8000*1600*1300(mm)



Working flow

Color Coated Metal Sheet Rolling Machine , Smart Metal Roofing Roll Former


Packing & Delivery

 Payment  terms: 30% TT deposite, 70% TT  balance before loading container

Delivery time: Within 40 days since receiving deposit.

Guarantee: 12 months



Supplying components of complete machine

NO.
Description
Quantity (set)
Remark
1
5Tmanual decoiler
1
As one complete part
2
Guiding device
1
3
Pre-cutter
1
4
Forming system
1
5
Transmission system
1
6
Hydraulic guillotine
2
7
Support table
2

8
Hydraulic station
1

9
Control box
1

10
Spare parts and tools
1
As attaching list
