Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine

China Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine supplier
Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine supplier Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine supplier Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine supplier Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine supplier

Large Image :  Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS CE
Model Number: 28-207-828

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: Western Union, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Row Material: Glavanized Coil / PPGI Color Coil Input Width: 1000mm
Special Service: OEM / Label Service Machine Color: Blue, Green, Grey, Or As Customer's Request
Working Speed: About 4-10m/min Warrenty: Twelve Months

Building Material Galvanized or PPGI GLazed Roofing Panel Sheet Roll Forming Machine with Automatic PLC control

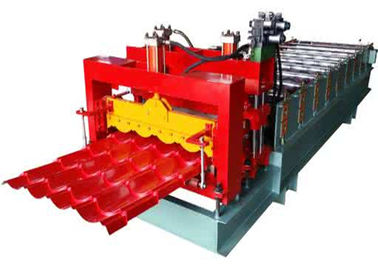

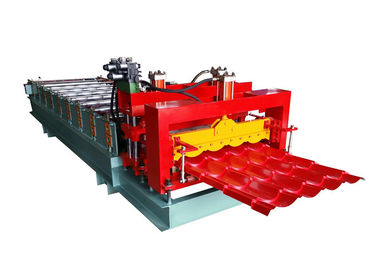

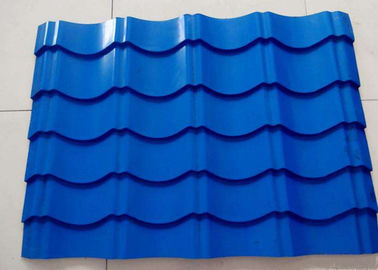

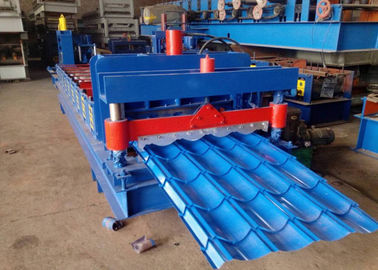

Product show

Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine

Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine

Working Flow& Layout

Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine

Supplying components of complete machine

NO. Description Quantity (set) Remark
1 5Tmanual decoiler 1
2 Guiding device 1 One complete unit as main machine
3 Pre-cutter 1
4 Forming system 1
5 Transmission system 1
6 Hydraulic guillotine 2
7 Support table 2
8 Hydraulic station 1
9 Control box 1
  Spare parts and tools 1 As attaching list



General parameters

No Item Parameter Note
1 Forming Speed Max2.5 m/min Excludes cutting
2 Forming station Around 13 groups
3 Total Power About 4+3 KW
4 Total Weight About 3380KGS
5 Voltage 380v,60hz,3Phase
6 Diameter of shaft 70mm
5 Installation Size 13 * 1.4 M*1.4



Main parts material

No Item Parameter
1 Forming Shaft 45# steel with grinding process
2 Forming Roller 45# steel with hard chrome coating
3 Cutting Blade Cr12MoV with hard treatment
4 Control System DELTA PLC& transducer, others are Chint etc.
5 Electrical motor China quality brand
6 Bearing China quality brand
7 Chain China quality brand
8 Hydraulic parts China quality brand



Line Components and Characteristic

Good Price Metal Glazed Tile Roll Forming Machine

Good Price Metal Glazed Tile Roll Forming Machine

Good Price Metal Glazed Tile Roll Forming Machine


After-Sales Service

1. We can produce the special machine,send your drawing to us,we can design for you.



2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.



3. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.



The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.



4.Engineers available to service machinery overseas.



Customers worldwide

Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine



Loading Container

Grey Color Corrugated Sheet Roll Forming Machine With 2 Hydraulic Guillotine
