Home ProductsDouble Layer Roll Forming Machine

Electric Control Double Layer Roll Forming Machine , Cnc Roll Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Electric Control Double Layer Roll Forming Machine , Cnc Roll Forming Machine

China Electric Control Double Layer Roll Forming Machine , Cnc Roll Forming Machine supplier

Large Image :  Electric Control Double Layer Roll Forming Machine , Cnc Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months

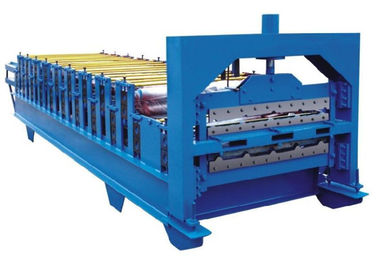

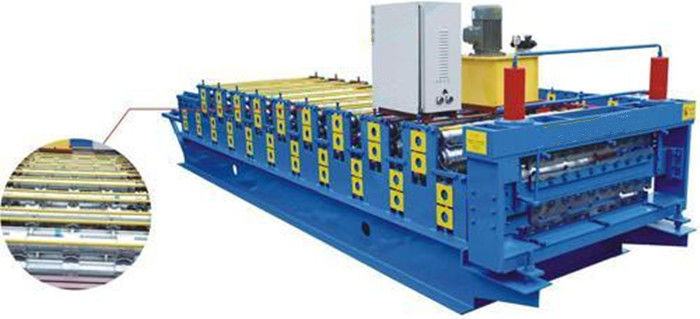

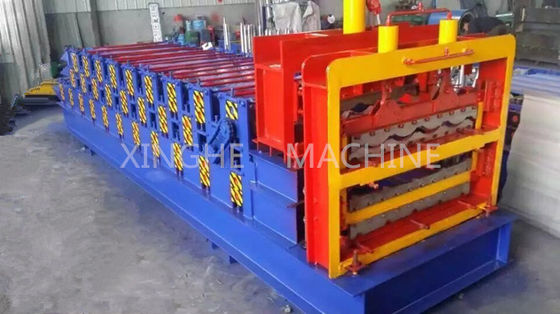

Double Layer Roll Forming Machine / Metal Roof Sheet Machine / Africa Popular Roll Forming Machine



1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



Lightweight Double Layer Aluminum Steel Roof Roll Forming Machine



(3).Technical Detail



A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.2-0.6 mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.
