Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

China Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station supplier
Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station supplier Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station supplier Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station supplier

Large Image :  Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH-GUTTER

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 7000-15000SUD
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production Capacity: 8-12m/min Place Of Origin: Botou,Hebei Province
Power(W): 4+3kw Voltage: 380v,50hz,3 Phrases
Dimension(L*W*D): 8.5*0.8*1.2m Weight: 4.5T
Certification: CE,ISO,TUV,BV Warranty: One Year Guarantee
After-sales Service: Engineers Available To Service Machine Color:: Any Color As You Like
Control System: Automatic Plc Control ODM: Available
High Light:

metal roll forming machine

,

sheet roll forming machine

Hot Sale! PLC Control and Hydraulic Station/Passed CE and ISO/ downspout pipe roll forming machine





Advantage of gutter roll forming machine

   The gutter roll forming machine is more durable than the tranditional ppc pipe, and not easy to aging. It will make the project more integrate, and help enhancing the image of all project.

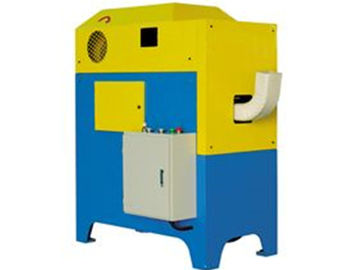

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

   The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.



The Chart of Process flow
Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates
Equipment sketch map:

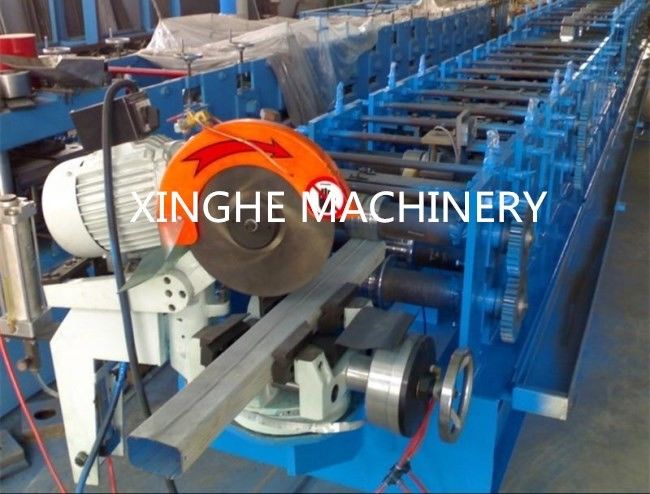

Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

Main technical parameters

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 410mm
3 Rollers 12rows
4 Dimensions 7.2*1.2*1.5m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller Φ70mm
9 Weight About 1.0T
10 Voltage 380V 50Hz 3phases
11 Material of the cutting plate Cr12
12 Hydraulic 40#
13 Processing precision Within 1.00mm
14 Control system PLC control



The equipment includes:
Roll forming machine,
1 set
Hydraulic cutter
1 set
Electrical control system
1 set
Hydraulic system
1 set
Hydraulic system
2 PC 1m*1m
Manual decoiler
1 set Max loading 5Ton

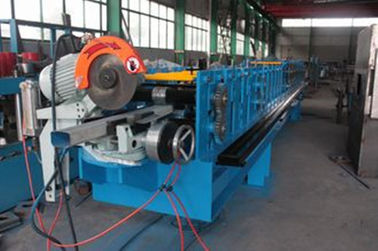

Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
