Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine

China Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine supplier
Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine supplier Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine supplier

Large Image :  Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH828

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production Capacity: 4-8m/min Place Of Origin: Botou,Hebei Province
Power(W): 4+4kw Voltage: 380v,50hz,3 Phrases
Dimension(L*W*D): 7400*1200*1500mm Weight: 2.5T
Certification: CE,ISO,TUV,BV Warranty: One Year Guarantee
After-sales Service: Engineers Available To Service Machine Color:: Any Color As You Like
Control System: Automatic PLC Control ODM: Available
High Light:

metal roll forming machine

,

sheet roll forming machine

China supper automatic Glazed tile roof panel rolling forming machine / roofing tile making machine production



Technical specification

Main systems
1 Decoiler Feeding material by the strength yielded by roller part
2 Adjustable device Leveling the material
3 Roll forming system Form the profile you want
4 Cutter Cut the sheet at fixed length
5 PLC Set length ,pieces and control the producing
6 Run out table Support the finished sheet
7 Hydraulic station and motor Supply the power

Components for choice


1 Hydraulic decoiler
2 Safety cover For safety
3 Auto run out table Support and move the finished product
Main parameters
1 Feeding material Color steel coil, aluminum,GI,PPGI
2 Material thickness 0.2~1mm
3 Material yield stress 230~550mpa
4 Feeding width Up to 1300mm
5 Forming speed 2~8m/min
6 Cutter material Cr12
7 Roller material 45# steel with chrome treatment
8 Cr plating thickness 0.05mm
9 Roller station 11 pieces(according to different profiles)
10 Controller PLC , touch screen and button
11 Hydraulic station motor power 3.0kw
12 Hydraulic presure 12mpa
13 Main motor power 7~8.5kw
14 Voltage 380v 3ph 50hz / as your needs
15 Total weight 6~8t
10 Dimension 10 x 1.5 x 1.5m

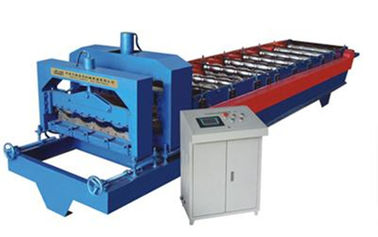

Machine photo:

Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine

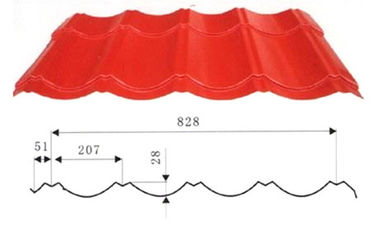

Sheet drawing

Glazed Tile Roof Panel Cold Roll Forming Machines / Roofing Sheet Roll Forming Machine
