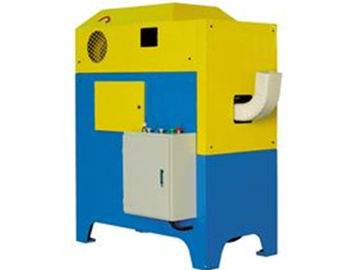

Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

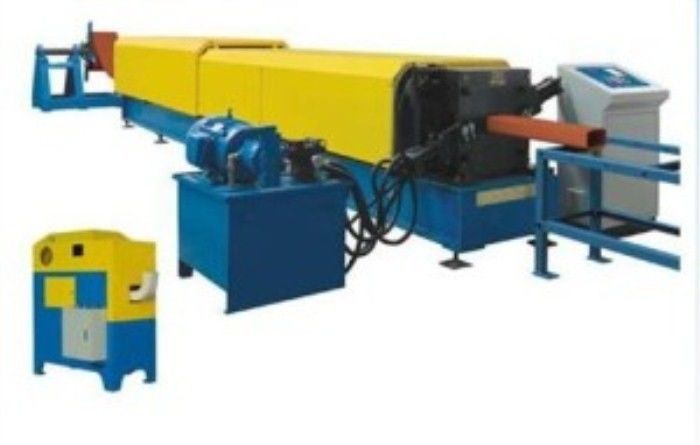

Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine

China Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine supplier
Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine supplier Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine supplier

Large Image :  Industrial Downspout Roll Forming Machine With Hydraulic Pipe Bending Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production: 0-15m/min Power: 11 Kw+5.5kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: Engineers Available To Service
High Light:

metal sheet roll forming machine

,

cnc roll forming machine

1. Square Downspout Roll Forming Machine Applied Range:

The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.

2. Square Downspout Roll Forming Machine Components:

Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.

3. Square Downspout Roll Forming Machine Working Flow:

manual uncoiler—Roll forming machine—computer control system—hydraulic control system—form cutter



4. Main parameter

material
coating rolled steel, etc
thickness
0.4-1mm
Forming specifications
depending on specific requirements of customers
Forming speed
10-15m/min
Main motor power
5.5-7.5 kw
Cutting mode
pneumatic flying saw tracking cutting
Rolling material
45# steel
Diameter of the roller
Φ80mm
Control system
PLC systems from Mitsubishi and Panasonic products
Optional accessories
hydraulic uncoiler



5. Supply List
A. Decoiler
1) Decoil speed: according to forming machine
2) Capacity: 5T
3) Max width of coil: 500mm
4) Max outside diameter of coil: 1300mm
5) Inside diameter of coil: 500mm
6) Dimension: 900mm*1100mm*1200mm

B. Feeding oriented plate


C. Forming system
1) Motor power: 5.5kw
2) Forming system is constituted by frame, chain, cold forming molds, and so on.
3) Frame is welded by complete steel.
4) Material of molds is bearing steel, which is produced precisely and chromium plated.
5) Molds are supported by connected medium plate.
6) Cycloid reduction motor
7) Thickness of forming sheet could be adjusted.

D. Cutting system
1) Cutting system is constituted by frame, cutting mold, oriented set, hydraulic pump station and so on.
2) Material of blade: Cr12
3) Shape of blade is depending on shape of panel side view.
4) Motor power: 3kw, provided by pump station.

E. Output bearing plate
1) Width of plate: depending on width of panel
2) Length of plate: 2m
3) Number of shelves: 2 set
4) Material: welded by triangle steel
5) Rollers on the top side.
6) Height of shelf could be adjusted.

F. Hydraulic system
1) Independent outside installed hydraulic pump station, which provide power for cutting system
2) Main parts are famous brand.

4. Quality & test standard
Quality of whole line is according to company standard.
Testing standard: Put forward objection in 30 days after adjusted the machine well.
