Payment & Shipping Terms:
|Condition:||New||Type:||Tile Forming Machine|
|Tile Type:||Colored Steel / PPGI / Galvanized Steel Coil||Use:||Roof Sheet|
metal roll forming machine,
sheet roll forming machine

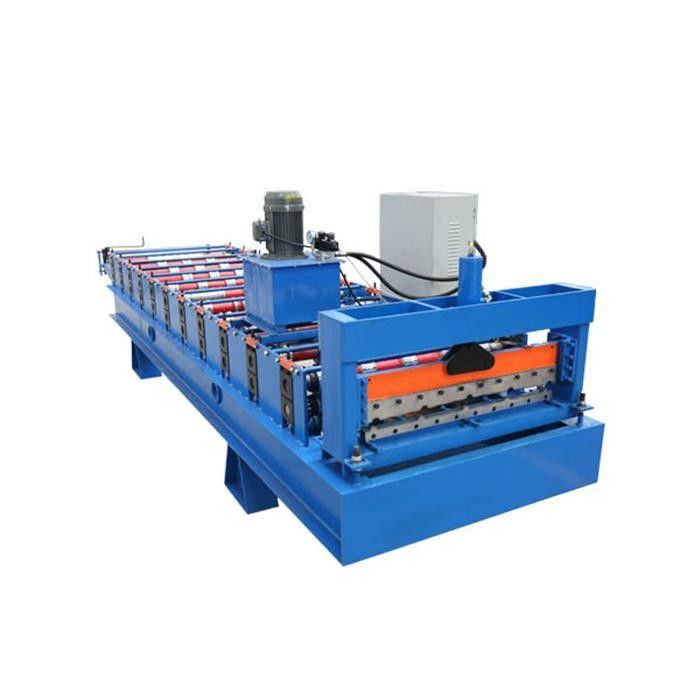

ISO9001 Approved Making Prefab House Roofing Roof Sheet Forming Machine
|No.||Main parameter of 840 trapezoidal ibr profile metal sheet roof panel roll forming machine|
|1||Suitable to process||Color steel plate|
|2||Width of the plate||1000mm|
|6||Thickness of the plate||0.3-0.8mm|
|8||Diameter of the roller||Φ80mm|
|9||Weight||About 2.0 T|
|10||Voltage||380V 50Hz 3phases|
|11||Rolling material||Carbon Steel 45#|
|12||Material of the cutting plate||Cr12|
|13||Processing precision||Within 1.00mm|
|14||Control system||PLC control|
Main Accessories of 840 trapezoidal ibr profile metal sheet roof panel roll forming machine:
|1||Decoiler(manual or hydraulic for options)||1 set|
|2||Feeding device||1 set|
|3||Main Forming Machine||1 set|
|4||Hydraulic cutting device||1 set|
|5||Hydraulic Station||1 set|
|6||PLC computer control system||1 set|
|7||4m Run Out Table||1 set|
1.Use 450H Beam as machine frame.
2.can use more than 10 year without any problem.
3.Use first brand PLC,trandsducer,Touch Screen.
4. 1 years Warranty.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free. If after warranty period,we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
7. You are trade company or factory?
We are factory.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
