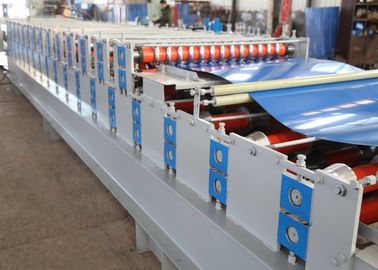

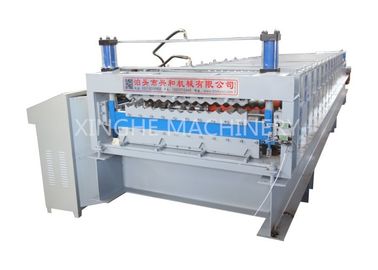

Aluminum Roof Sheet Double Layer Roll Forming Machine , IBR Step Tile Roll Forming Machine

China Aluminum Roof Sheet Double Layer Roll Forming Machine , IBR Step Tile Roll Forming Machine supplier
Aluminum Roof Sheet Double Layer Roll Forming Machine , IBR Step Tile Roll Forming Machine supplier Aluminum Roof Sheet Double Layer Roll Forming Machine , IBR Step Tile Roll Forming Machine supplier

Large Image :  Aluminum Roof Sheet Double Layer Roll Forming Machine , IBR Step Tile Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 7.5+5.5kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 8600*1300*1500mm
Machine Weight: 8.0Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service

1. Processes and components



Processes: Man-made uncoilerRoll forming machinePLC



systemHydraulic systemmold pressing machine-Blade-Receiving table



Good Price IBR& Step Tile Double Layer Roll Forming Machine

2. Components of line:



No. Name Unit Qty
1 Man-made uncoiler set 1
2 Main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1
5 mold pressing machine set 1
6 Blade set 1
7 Receiving table set 1



3. Function and structure: Man-made uncoiler



Application and technical parameter :



Inner diameter:ø500mm



Outer diameter: ø 1100mm



Width:1000 mm



Loading weight:5 T





4. Main machine for roll forming



Application and technical parameter:



Pass:16 passes



Shaft diameter:ø70mm



Roller material:45 steel(Cr coating)



Total power:7.5+5.5 KW,depend on different designs



5. Control system:
Function and operation:Control the starting,operation and stopping of the complete line,including distribution section,
operation table, counting instrument. Use PLC to control,set and adjust the length. Both man-made and auto operations:on the man-made condition,each equipment can operated by switch;on the auto condition,only circulating stop and rapid stop switch.



6. Hydraulic system



Function: apply power for cutting machine



7. Blade



Function and structure: cutting the forming sheet



Application and technical parameter:Blade material: Cr12 and Harding treatment



Max thickness: 0.3-0.8mm



8. Payment: 20%deposit, full payment before shipment.



9. Delivery: 30 days after getting deposit.



10. Guarantee:

In correct operation and maintenance, the machine is two years guarantee since leaving the sellers factory.



11. Installation:

If buyer need, the seller will send one or two technician to the buyers factory to install & testing the machine, the buyer will assist the sellers technician to get the visa and pay for the two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 100USD/day for technician extra.
