Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine

China Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine supplier
Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine supplier Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine supplier

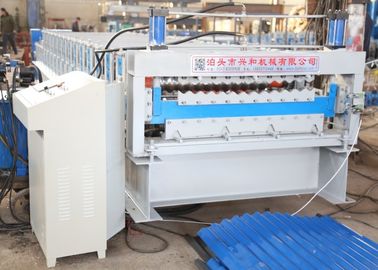

Large Image :  Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH836/1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 7.5+5.5kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 8900*1300*1500mm
Machine Weight: 8.0Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service

The steel tiles produced by roof tile forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa,etc.



Tile Roll Forming Machine Material:
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.



Double Layer Roof Tile Roll Forming Machine

Item Specification



Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.18-1.2mm
Yield strength 235Mpa.Q345Mpa, Q550Mpa
Roller material No.45 forged steel
Forming speed About 20-25m/min
Output speed 15-25m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Panasonic or Delta PLC
Operating mode Button + Panasonic/Delta Touch screen
Main motor 7.5KW
Hydraulic station motor 5.5KW



Sheets

Double Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making MachineDouble Layer Corrugated Roof Tile Roll Forming Machine/ Aluminum Metal Roofing Sheet Making Machine

FAQ:

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you sell only standard machines?

A: No. Most machines are made to order.We accept any OEM



7) What should I provide if I`d love to customized my machine?

A: To customize machine, we`d love to know:

1. Profile drawing
2. Raw material: the width(1250mm or 1200mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker



Have no idea about them?

We will be glad to recommend machines ----Just let us know your country!
