Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine

China Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine supplier
Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine supplier Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine supplier

Large Image :  Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months

Color Coated Meta lIron Steel Corrugated Arch Roofing Panel Roll Forming Machine



Color Steel Roofing Profile Double Layer Roll Forming Machine

The Color Steel Roofing Profile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.



Machine parameter

1 Suitable to process Color steel plate
2 Width of the plate 1000mm
3 Rollers Up:9 row, bottom:11rows
4 Dimensions 5.6*1.3*1.2m
5 Power 3+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller Φ80mm
9 Weight About 4.0 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control

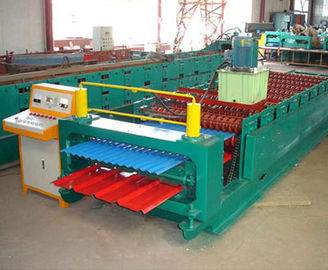

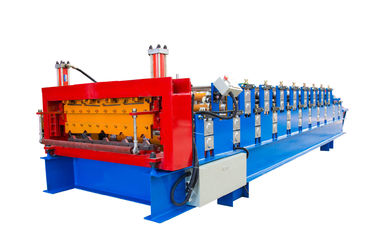

Machine shows

Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine

Color Coated Meta Iron Steel Corrugated Arch Roofing Panel Roll Forming Machine
