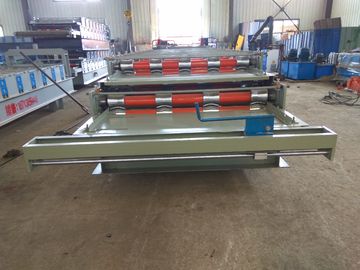

Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size

China Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size supplier

Large Image :  Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 7.5+5.5kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 8900*1300*1500mm
Machine Weight: 8.0Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service
High Light:

metal roof forming machine

,

metal sheet forming machine

Product Application
The double-layer presses are rolled and molded, which are both solemn and elegant, and are beautiful and beautiful. The appearance is smooth, ripple is uniform, the utilization rate is high, the strength is high, the production automation is high, the cost is low and durable. Double-layer tile machine products are widely used in large and medium-sized enterprises of civil construction, such as plant, garage, hangar, stadium exhibition hall, theaters and so on.



Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size

1. Technical Parameter



Item Specification



Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.3-1.2mm
Yield strength 235-345Mpa
Roller material 45#Chrome steel
Forming speed 20-25/min
Output speed 8-10m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi screen
Main motor 7.5KW
Hydraulic station motor 5.5KW



2. Roll Forming Machine Components



Decoiler 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set



3. Working Process Flow:



Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – receivig table

Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size



Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size

Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size

FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this machine in stock?

A: No, machine is made to order.



Ppgi Corrugated Tile Roll Forming Machine Heavy Duty 8900*1300*1500mm Size
