Steel Corrugated Roof Making Machine , Roofing Sheet Forming Machine 8-12m/min Speed

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Steel Corrugated Roof Making Machine , Roofing Sheet Forming Machine 8-12m/min Speed

China Steel Corrugated Roof Making Machine , Roofing Sheet Forming Machine 8-12m/min Speed supplier

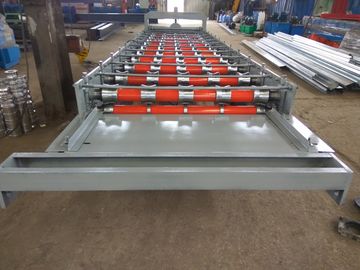

Large Image :  Steel Corrugated Roof Making Machine , Roofing Sheet Forming Machine 8-12m/min Speed

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production Capacity: 8-12m/min Place Of Origin: Botou,Hebei Province
Power(W): 3+3kw Voltage: 380v,50hz,3 Phrases
Dimension(L*W*D): 7400*1200*1500mm Weight: 2.5T
Certification: CE,ISO,TUV,BV Warranty: One Year Guarantee
After-sales Service: Engineers Available To Service Machine Color:: Any Color As You Like
Control System: Automatic PLC Control ODM: Available

Steel Corrugating Machine Corrugated Roof Making Machine



All the technical parameters are also made as per the cutomers' requirements.

1.Weight capacity of decoiler 2.5T
2.Appearance Size(L*W*H) 7400*15200*1500
3.Raw material /feeding sheet material Colored steel & galvanized steel
4.Roller material 45used roll forming machine high grade steel
5.Shaft material 45used roll forming machine high grade steel
6.Kind of drive Chain drive
7.Cutting system Automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10.Control system Totally automatic PLC control system
11.Main power 3 kw
12.Roller stations 13 rows
13.Speed of production 8-12m/min
14.Thickness of colored steel 0.3-0.8mm
15.Feeding width 1000mm
16.Effectiv width 1050mm
15.Frame material 300 H-steel



Our after-sale service:

Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.

Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine ,you only responsible for the labour and parts if the machine have some problems.
