3kw Colored Steel Corrugated Forming Machine With 5 Ton Loading Capacity

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

3kw Colored Steel Corrugated Forming Machine With 5 Ton Loading Capacity

China 3kw Colored Steel Corrugated Forming Machine With  5 Ton Loading Capacity supplier
3kw Colored Steel Corrugated Forming Machine With  5 Ton Loading Capacity supplier 3kw Colored Steel Corrugated Forming Machine With  5 Ton Loading Capacity supplier 3kw Colored Steel Corrugated Forming Machine With  5 Ton Loading Capacity supplier

Large Image :  3kw Colored Steel Corrugated Forming Machine With 5 Ton Loading Capacity

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months

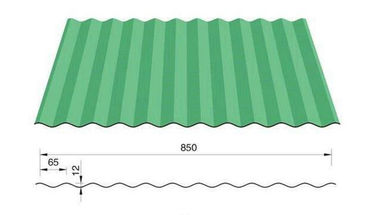

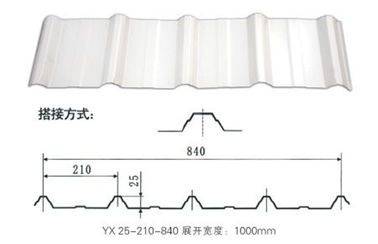

European Style Double layer machine Partial Arc Color Steel Roof Roll Forming glazed tile machine

Best Quality Double Layer Roof tile Roll Forming Machine

PACKAGE: NUDE PACKAGING IN 1*40 GP CONTAINER

DELIVERY TIME: 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT



Double Layer Roll Forming Machine Uncoiler System



Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5 T
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm

Double Layer Roof Tile Roll Forming Machine

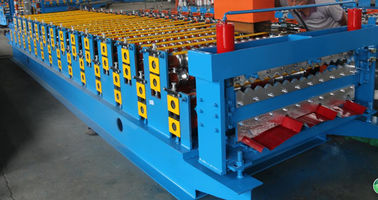

Double Layer Roll Forming Machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 4.0 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer's need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
Main power: 4.0kw



Double Layer Roll Forming Machine Working Flow:

Double Layer Roof Tile Roll Forming Machine

Double Layer Roof Tile Roll Forming Machine



Double Layer Roll Forming Machine Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
It is used to make the step , the glazed tile's final formed.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Function : Automatic cutting controlled by PLC
Material of blades : Cr 12 quenched
Power supply : Hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Double Layer Roof Tile Roll Forming Machine



Double Layer Roll Forming Machine Hydraulic Station
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic motor Power: 4 kw
Hydraulic oil: 46# hydraulic oil
Volume: 30 L
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves.

Double Layer Roof Tile Roll Forming Machine


Double Layer Roll Forming Machine Electric Control System
1. Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.
2. Voltage: 380V 50 HZ 3 PHASE (As customer's need)
3. Language: English and Chinese
4. Automatic length measurement
5. Automatic quantity measurement
6. Length Tolerance: 3 m±1.5 mm
7. Length inaccuracy can be amended easily.
8. Unit of length: millimeter (switched on the control panel)
9. Computer operating panel: touching screen and button together.

Double Layer Roof Tile Roll Forming Machine


Double Layer Roll Forming Machine Warranty

1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
