15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction

China 15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction supplier
15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction supplier 15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction supplier

Large Image :  15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery Time: 40 Working days
Contact Now
Detailed Product Description
Type: Tile Forming Machine Use: Floor
Power: 15.0KW Machine Sizes: About 16*1.2*1.0m(L*W*H)
After-sale Service: Engineers Available To Adjustment Abroad
High Light:

floor tiles making machine

,

tile roll forming machine

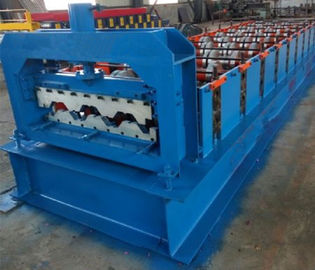

15KW Floor Deck Roll Forming Machine For Metal Structural Building Construction

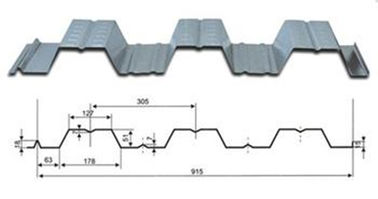

1. 915 Floor deck forming machine

Floor deck forming machine used for floor panel, it has features of high wave crest, high strength ,and also automatic production. It has low cost good adhensiveness advantages.

The product used in large workshop, roof contruction and so on.

The whole equipment includes feeding platform, roll forming , automatic shearing device, hydraulic system, computer control system.

The suitable material  can be color steel, aluminum sheet and galvanized sheet.

Configuration: manual unociler, main forming machine, gearbox motor, hydraulic system, cutter, output table.

Control system : automatically, adjustable speed, length-setting



2. Main Parameter and specification

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.

Technical parameters:
1 Name of commodity & specification XH915Floor Deck roll forming machine
2 Main motor power 18.5kw, 3 phase,50-60HZ
3 Hydraulic motor power 15kw
4 Hydraulic Pressure 18-20MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 450mm H-Beam
8 Backboard Thickness 22mm
9 Chain Size 66mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
12 Feeding Width 1250mm
13 Effective width 915mm
14 Productivity 8-10m/min
15 Roll Station 27
16 Roller Diameter 95mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 15000×1200×1100mm
21 Total Weight 19T
22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
23 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24 Package nude in the container
25 Minimum order quantity 1 set
26 Payment terms T/T(30% T/T pay in advance, the remaining 70% pay before ship)
27 Delivery time 30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.



3.Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs



4.Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before

shipment.

Delivery within 45 working days after receipt of deposit.
Packing Nude packing with 1*40HQcontainer
Warranty One year, and we will provide the technical support for the whole life.
Installation

1.Training: the buyer should charge of visa, return ticket, food and

accommodation overseas and USD100/person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)



5.Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repairroll forming machine for sale for free in one year.



6.Other machine for choice

Xindingli cold bending machine/Cold Steel Profiles floor decking roll forming machine 915
