Payment & Shipping Terms:
|Sheet Type:||PPGI / Galvanized Sheet||Voltage:||380V, 3 Phase, 50Hz|
|Power:||3kw+3kw||Control:||PLC Computer Control|

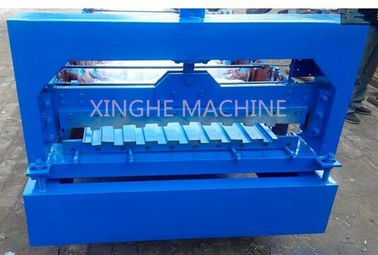

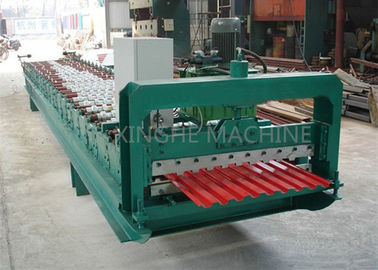

rolling shutter strip making machine,
roller shutter door roll forming machine
New Condition Roller Shutter Door Slats Roll Forming Machine Rolling Shutter Door Roll Forming Making Machinery
2.Width of the plate: 1220mm
6.Thickness of the plate:0.3-0.7mm
7.Diameter of the roller:Φ60mm
8.Weight: About 3.2T
9.Voltage: 380V 50Hz 3phases
11.Processing precision: Within 1.00mm
12.Control system: PLC control
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table
3T Passive De-coiler
Diameter: 460-520mm expansion.
1. hydraulic station pressure: 12MP
2. power of hydraulic station: 3.0KW
1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm
(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)
(2)Length & quantity measurement automatically;
(3)Length & quantity controlled by PLC,
(4)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter (switched on the control panel)
Length : 3m
Standard Profile and Drawing
Our company is a manufacturer of roll forming machine. At present, our products have been exported to more than 70 countries and regions over the world, and maintained good cooperative relations with customers .We do firmly believe :technological innovation ,making every detail of the product perfect is our ambition ever.
Main product catagories
color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.
Botou XINGHE Roll Forming Machine Factory, are professional manufacturer and exporter , specializing in designing, manufacturing, developing, sales and services in roll forming machine .
We are proud of our own professional team with more than 10 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services.
We are located in Botou city,Hebei,near Beijing, with convenient transportation access. We have been establishing and keeping good business relationship with more than 70 countries of worthy clients all over the world, mainly locating in East Europe, Middle East, South and West Asia, Africa and South America.
Contact Person: Kim Lee
