Payment & Shipping Terms:
|Condition:||New||Type:||Tile Forming Machine|
|Tile Type:||Colored Steel / PPGI / Galvanized Steel Coil||Voltage:||380V 60HZ Or At Your Requirement|
|Power:||4+4KW||After-sale:||Engineers Available To Service|
sheet metal roll forming machine,
corrugated roll forming machine

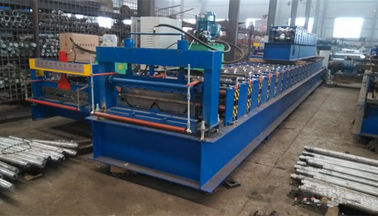

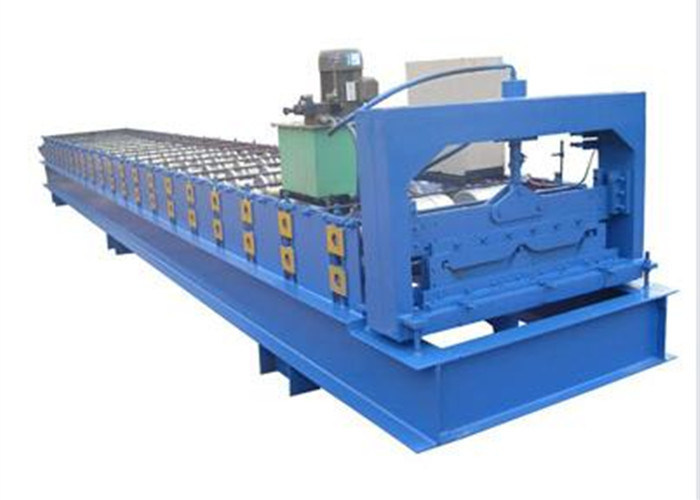

JCH 760 Roll Forming Machine / Galvanized Sheet Roof Panel Machine / Hidden Roof Panel Machine
Parameters ( 760 JCH Standing Seam Roll Forming Machine )
|Type||JCH metal roofing sheet forming machine||
double layer roll forming machine
|Cover width||Customized Profile|
|voltage||380V/3PH/50HZ||Up to Practical Profile|
|Transmission||Chain and Sprocket||
Gearbox and Cardan
|Structure||Column Block Or Wall Plate|
|Shafter||No.45 steel tempered|
|Rollers||No.45 steel chrome coated||Cr12 or other acceptable|
|Cutting Blade||Cr12 quenched|
|Press Mould||Cr12 quenched|
|Punch Mould||Cr12 quenched|
|Forming Speed||15-20m/min for standard solution||Higher Speed Solution Available|
|Working Speed||Up to Length-set Cutting|
|Max. Capacity||5 T/10T/15T|
|Suitable coil ID||508/610mm|
|Max Coil width||1250mm|
|7||Forming ;Stand||18 steps||Up to Practical Profile|
|8||Forming Shaft Diameter||55-120mm||Up to Practical Profile|
|9||Type of Cutting||
Length-set cutting after roll
formed,CR12 mould teel
|10||Control System||Mitsubishi PLC and Inverter|
|11||Output Supporter||2 Pcs Simple Supporter||Auto Stacker Optional|
PS: the above are for reference; customized design is provided.
Working Flow ( 760 JCH Standing Seam Roll Forming Machine )
1. We provide our customers with 1 year warranty.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free at the whole life of the machine.
4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.
1. Standard packaging: Main machine is naked. Computer control system is packed by carton box. Hydraulic pump in waterproof bubble wrap. spare parts in carton box.
2. pack according to customers' requirements.
1. What's your payment terms?
Payment: 30% deposit by T/T before production and the balance 70% after inspection confirmation before shipment.
2.The delivery time?
We deliver the machine within 30-45 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free during whole life of our equipment.
