Payment & Shipping Terms:
|Condition:||New||Type:||Tile Forming Machine|
|Tile Type:||Colored Steel / PPGI / Galvanized Steel Coil||Power:||3.0+3.0kw|
|Voltage:||380V 60HZ Or At Your Requirement||After-sale:||12 Months|
glazed tile roll forming machine,
corrugated roll forming machine

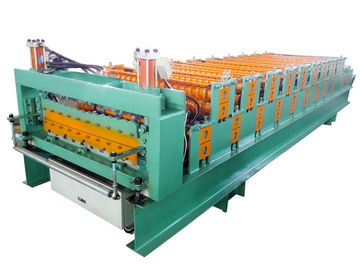

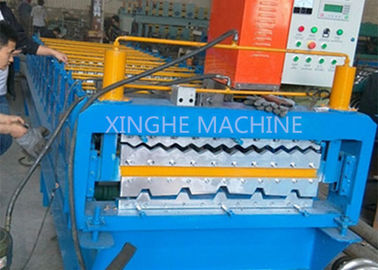

Color Steel Roofing Profile Double Layer Roll Forming Machine
The Color Steel Roofing Profile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
|No.||840/850 Double Layer Roof sheet roll forming machine|
|1||Suitable to process||Color steel plate|
|2||Width of the plate||1000mm|
|3||Rollers||Up:9 row, bottom:11rows|
|6||Thickness of the plate||0.3-0.8mm|
|8||Diameter of the roller||Φ80mm|
|9||Weight||About 4.0 T|
|10||Voltage||380V 50Hz 3phases|
|11||Rolling material||Carbon Steel 45#|
|12||Material of the cutting plate||Cr12|
|13||Processing precision||Within 1.00mm|
|14||Control system||PLC control|
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free. If after warranty period,we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
7. You are trade company or factory?
We are factory.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
9.Payment: T/T, 30% in advance, 70% before shipment;
Delivery Time: 40 days after receipt of the deposit;
Packing: Plastic Film Cover
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra salary for our engineer will be paid by the buyer.
Warranty: 1 years since the machine leave seller's factory.
Maintenance: Life-long maintenance
Contact Person: Kim Lee
