Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine

China Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine supplier
Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine supplier Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine supplier

Large Image :  Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH850

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 4.0+4.0kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 7600*1300*1500mm
Machine Weight: 2.5Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service

1.The technical data of corrugated sheet metal roof making machine

Technical parameters of corrugated sheet metal roof making machine



1 Name of commodity & specification XH-850 steel roofing sheet making machine
2 Main motor power 4.0kw
3 Hydraulic motor power 4.0kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 300mm H-Beam
8 Side panel Thickness 14mm
9 Chain Size 20mm
10 Feeding Material color steel coils, galvanized sheet, aluminium coils
11 Feeding Thickness 0.3-0.8 mm
12 Feeding Width 1000mm
13 Effective width 850mm
14 Productivity 8-12m/min
15 Roller Station 9
16 Roller Diameter 70mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 5600×1300×1100mm
21 Total Weight 3T
22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
23 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24 Package Main machine is nude in the container

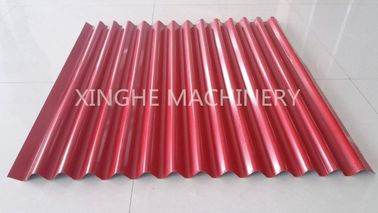

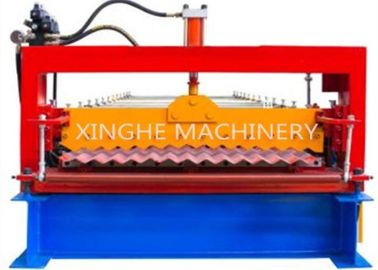

2.There are some pictures of corrugated sheet metal roof making machine

Automatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making MachineAutomatic 850 Metal Roofing Corrugated Tile Roll Forming Machine / Colored Steel Sheet Roll Making Machine
