820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine

China 820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine supplier
820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine supplier 820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine supplier

Large Image :  820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH820

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 4.0+4.0kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 7600*1300*1500mm
Machine Weight: 3.0Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service

Application:



No.Main parameter of 820 metal glazing roof tiles roll forming machine
1Suitable to processcolor steel,galvanized
2Width of the plate1000mm
3size6.5*1.5*1.5m
4Main machine n moter power4kw
5Hydraulic unit power4kw
6Thickness of the plate0.3-0.6mm
7Productivity3-5m/min
8Diameter of the rollerΦ75mm
9Voltage380V 50Hz 3phases
10Material of the cutting plateCr12
11Control systemPLC control


Technical process:

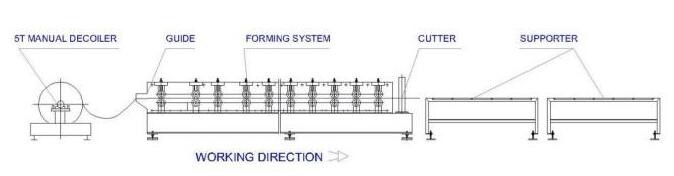

Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table

Process of the roll forming machine
820 Model Automatic Glazed Tile Steel Profile Bending Forming Machine

Component line

NONameUnitQty
1Man-made decoilerset1
2Main machine for roll formingset1
3Control systemset1
4Hydraulic systemset1



Packaging & Shipping

Our packaging and shipping:



1:Nude in container with plastic film.

2:We can do the packaging according to your need.

820 metal glazing roof tiles roll forming machine



Best service

1.We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your worker. you just only bear the cost for our engineer's air ticket,visa,accommodation,food and transpotaion in your country.
3.You can send your worker to our factory. we will teach them how to operate the machine without training charges.
4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.

If there is any problems happened to the machine, we will provide solution at once.
Hope we could establish win-win business relations in the soon future!
