PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control

China PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control supplier
PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control supplier PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control supplier

Large Image :  PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Use: Shutter Door
Sheet Type: PPGI / Galvanized Sheet Voltage: 380V, 3 Phase, 50Hz
Power: 3kw+3kw Control: PLC Computer Control

800 Full Automatic Aluminium Galvanzied Roller Shutter Door Roll Forming Machine

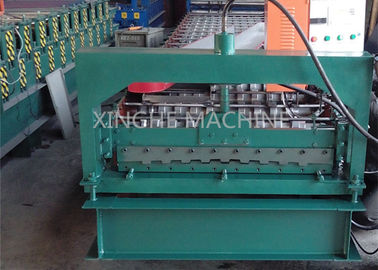

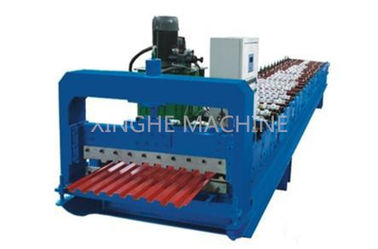

Machine photoes

PPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor ControlPPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor ControlPPGI Steel Roller Shutter Door Roll Forming Machine With 3kw Power Motor Control



Machine parameter

1.Suitable to process: Color steel plate

2.Width of the plate: 1220mm
3.Rollers: 18rows
4.Dimensions:7*1.55*1.51m
5.Power: 3kw
6.Thickness of the plate:0.3-0.7mm
7.Diameter of the roller:Φ60mm
8.Weight: About 3.2T
9.Voltage: 380V 50Hz 3phases
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control





Working flow



De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table



Machine component



3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg



Hydraulic station



1. hydraulic station pressure: 12MP
2. power of hydraulic station: 3.0KW



Hydraulic Cutting



1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm



Control Box



(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)



Output Table


Length : 3m
Quantity: 1units



Standard Profile and Drawing
