Green Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide

China Green Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide supplier
Green Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide supplier Green Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide supplier

Large Image :  Green Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Use: Roof Sheet
Power: 4.0+4.0kw Voltate: 380V,50HZ,3 Phase

1050 New design Corrugated color steel Metal Roofing Sheet 6 Waves Panel Roll Forming Machine



Working Porcess

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished

CY 1050 cement tile making machine



Sepcifictaion



Material

Thickness 0.3-0.6mm
Feeding width 1200mm/1220mm
Applicable material GI/PPGI/AL



Manual Un-coiler

Max Capacity 3-5Ton
Features Manual with brake



Main Forming System

Motor Power 3KW forming system
Roller material 45# steel , precision machined, mirror treatment, coatd with rigid chrom
Main forming shaft Φ70mm, 45# tempering steel
Frame 300H steel plate welding
Forming station 13 stations
Transmission by chain-and-gear
Measuring accuracy +/- 2 mm/M
Producing speed 8-12m/min
Working procedure decoilering--forming--moulding--cutting--product finished



Hydraulic Cutting Device

Cutting way Post cut, stop to cutting
Cutting material Cr12 with harded quenched and tempered, two piece of cutting blades
Motor power of Oil pump station 4.0KW



Electrical System

Control system PLC controller(import brand)
Power 380V 50Hz (as per local requirement)



Extra


Dimesion(L*W*H) 6500mm*1300mm*1000mm
Weight(Ton) 2.0T



Service


After-sales Service Engineers available to service machinery overseas
Warranty 12 month

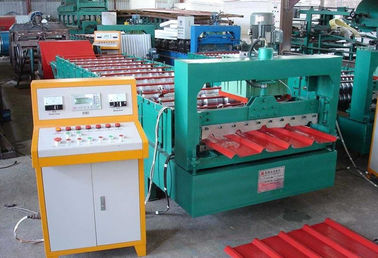

Machien shows

Green Color Roofing Sheet Roll Forming Machine With Stainless Steel SlideGreen Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide



Sheet Panel ProfileGreen Color Roofing Sheet Roll Forming Machine With Stainless Steel Slide
